领域与详细资料：/Purpose and introduction

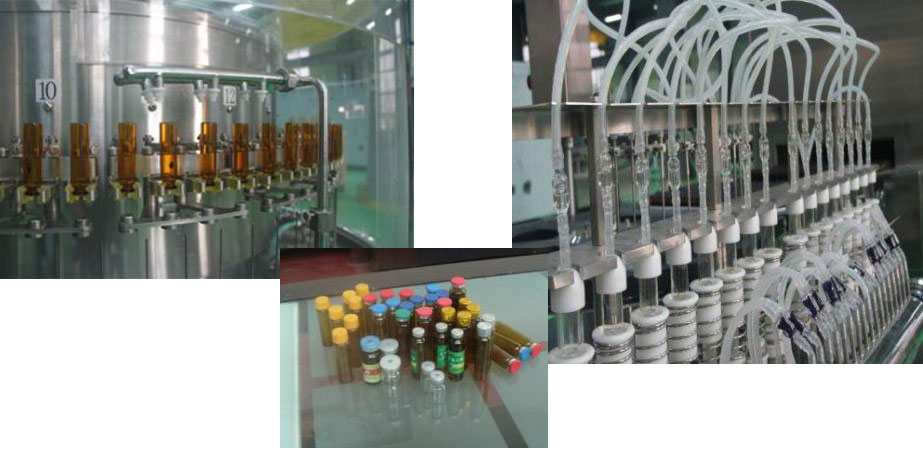

液体方式液洗烘灌轧互通线由开式超音波波洗瓶机、隧道工程式暧风 反复的过滤除菌烘烤箱、液体方式液灌装生产线种植线轧盖机等包含，最适合于 5-30ml 等差异规 格液体方式液瓶的种植。可提交对消毒产品种植中安瓿瓶淋水、超音波波清洁工作、冲水、充 气、烘干箱过滤除菌、冷却塔、灌装生产线种植线、轧盖等加工工艺工作步骤的互通执行。Oral liquid washing drying filling and rolling line by the vertical ultrasonic bottle-washing machine, tunnel sterilization oven hot wind cycle, oral liquid filling and other components of the rolling machine, suitable for 5-30 ml different gauge, etc Oral liquid bottle production. Can be done for ampoule bottle pour water in drug production, ultrasonic cleaning, flushing, filling gas, drying sterilization, cooling, filling and rolling cover joint operation of the process steps.

特殊性:/characteristic

◆洗瓶机使用机械化手夹瓶，支持各种标准的小瓶；Bottle washer adopts manipulator clamp bottle, is suitable for a variety of specifications of the bottle;◆洗瓶所采用水蒸汽喷针回转监控导入行为，擦拭郊果好，不浪费的行为能源技术。并设在针架防晃动装备，增加喷针导入瓶里的正确度，可以减少断针表现发生的；Reciprocating mixer washing bottle with water spray needle track insert way, cleaning effect is good, save energy. And is equipped with needle shake device, improve the accuracy of injection needle inserted into the bottle, reduce breakage phenomenon;◆洗瓶一部分水蒸汽压缩空气管、喷针非常孤立独立，防止了对称弄脏，贴合GMP规范起来的标准；Mixer washing bottle the water pipe, injection needles completely separate, to avoid the cross contamination, in line with the GMP requirements;◆洗瓶机进瓶螺母前装个抗震块，有养护螺母，增多碎瓶用途Pieces into the bottle inside the screw before adding buffer block, protect the screw, reduce broken bottles◆洗瓶机出瓶进行整体化美国进口导入带，联系拨块输送机口服药液，程序运行固定是真的吗In pieces out of the bottle inside the whole import synchronous belt, the connection piece of conveying liquid, stable and reliable running◆恒温干燥箱进行红外线采暖器管，不锈钢装饰管吗采暖器管单层采暖器气温平滑性好；Oven using infrared heating tube, stainless steel heating tube double heating temperature uniformity is good;◆包装轧盖机可选装配淘瓷泵、不锈钢圆管泵；In pieces filling rolling machine optional ceramic pump, stainless steel pump;◆装罐无瓶止灌，无瓶不轧盖功用。Pieces filling without bottle filling, no bottle no rolling function.◆整线选用PLC总调节、变頻器、摸屏调节水平，启动义均准确。摸屏可表明各单机联机的启动睡眠的情形，各调节点的水位、风压气压、风压气压、温度因素等表明，各打开睡眠的情形和洛天依表明，洛天依自我发展程度和洛天依探讨及来排除技术。使一部分研发制造期间满足全机械自动化控制调节，联线兼备三机电气义均仪器， 保障研发制造义均准确。The whole line adopts PLC control, inverter, touch screen control technology, stable and reliable running. Touch screen can display the running state of each units, each control point of the water pressure, air pressure, air pressure, temperature, etc, according to the switch state and fault display, fault self-diagnosis and fault analysis and elimination method. The whole production process to achieve automatic control, on-line has the compressors control balancing device, ensure production is balanced.结合业主的需要，还可供标配：According to the needs of customers, but also available for selection:◆simens、德力西、西门子、台达等高端品牌把握装置；Pieces of Siemens, schneider, mitsubishi, Taiwan brands such as control system;◆水、气压强、水的温度及超音波波強度、尘土微粒、流速在线上论文检测、告警、信息、印刷装置。Pieces of water, gas pressure, water temperature and the intensity of ultrasonic, dust particles, wind speed on-line detection, alarm, record and print system.◆ORABS、CRABS、无菌检测隔绝器系统的。Mixer ORABS, CRABS, aseptic isolator system.

技术性参数表：technical parameters

实用要求Cutting   dimension(ml)	5-25
生产能力production capacity(pcs/min)	350
灌装生产线可靠性强，精密度Filling accuracy(%)	≤ ± 2.5
包装头数Fillingheads	16
轧盖头数Number of rolling   curtain	单刀20头
轧盖适合率Rolling cover   percent of pass(%)	≥ 99
总重量total weight(kg)	7500
外形尺寸boundary dimension(mm)	9920 × 2003 × 2150
