作用与简单/Brief Introduction：

机器是结合在一起服食液玻离瓶的新的产品，非常彻底处理好了近半年服食液玻离瓶的欠佳体验。这一灌封机所需的可塑料瓶子，非但不要求洗瓶机、烘干处理机，更不要求清洁消毒，是可以可以灌封。设备全自主理瓶、进瓶、罐装生产线，罐装生产线量相对相对稳定，无漏滴，无瓶不罐装生产线。上盖、封膜率能够达到100%。此机高技术为先进，体型小、运动相对相对稳定、低频噪音低，进行维修培训、清理非常方便等显著特点，非常满足GMP标准。This machine is a new product instead of oral liquid bottles, thoroughly solved before the adverse effect of oral liquid glass bottle. The used plastic bottles, filling and sealing machine not only don't need to bottle washer, dryer, more don't need disinfection, can be directly potting. The machine is fully automatic unscramble bottle, bottle feeding, filling, filling volume stability, no LouDi, no bottle no filling. Cover and sealing rate can reach 100%. This machine technology is advanced, small volume, stable running, low noise, convenient operation and maintenance, cleaning, etc, in full compliance with GMP standard.注：本参数有中速和稳定俩种产出量供您确定。Note: this model has two kinds of low speed and high-speed production for your choice.

基本特征 Characteristic

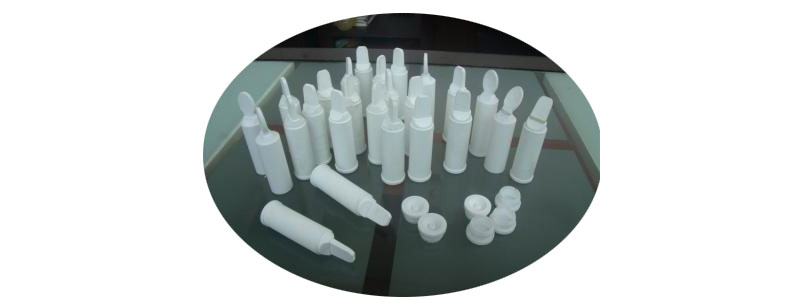

◆该机可应用于于各种各样的易折瓶口服药液计量检定包装和密封。The machine is suitable for all kinds of folding bottles of oral liquid filling and sealing of measurement.◆所有的电嚣组件均使用着名店牌。All electrical components adopt famous brand◆机器操控主观便宜，无瓶不灌装线，量值溯源*。It has intuitive and convenient operation, no bottle no filling, measuring precision.◆易折塑料件瓶灌封机的通常的结构与基本原理Easy to fold the main structure and principle of plastic bottle filling and sealing machine◆NFGFY型服食液易折朔料瓶灌封机通常理瓶器、理盖器、主传动仪器程序、数据同步带齿隙送罐仪器、玻璃瓶子检漏仪器、包装结构、删去仪器、热熔连接封结构、气动平衡机手掌夹瓶结构、伺服发电机发电机齿隙上瓶结构与出瓶结构等包含。Type NFGFY oral liquid is easy to fold the plastic bottle filling and sealing machine main GaiQi bottle opener, and the main transmission system, the synchronous belt clearance to send bottle device, empty bottle leak detection device, filling body, eliminating device, hot melt sealing mechanism, pneumatic mechanical fingers bottle gap on the bottle structure, servo motor and a bottle of institutions, etc.◆POS机适用的口服方式液易折泡沫塑胶瓶、盖是一个定洁净室区产出的，具备药袋材经营证，故瓶身与底盖经传承和"去外包服务"后可随便进灌封间。利用理盖器、理瓶器的系统自动方向培养收纳，移除反向的方式给回底盖及瓶身底口朝下的瓶，使方向培养后的包材喂料有要求地进输送机正轨中。Machine using oral liquid is easy to fold the plastic bottles, cover a certain production of clean area, should have the medicine packaging material license, so the bottle and the bottom cover after transfer and "outsourcing" can go directly into the potting. By Richard GaiQi, automatic directional arrangement of bottle opener, eliminate reverse bottom cover and the bottom of the bottle mouth bottle at the bottom, after making the orientation of packaging material feeding regularly into orbit. ◆定向生后冲剂液易折塑料件瓶在运输道轨里排Directional oral liquid after folding plastic bottles in conveying rail out easily

科技技术指标technical parameters：

型号model	NLGFY-40	NLGFY-80
装量使用范围The load range	5-100ML
生产能力production capacity	20-40瓶/分	50-80瓶/分
塑封率Hot sealing intensity	》99%
装量不确定度The load error	《1.5%
碰坏率damage rate	《1.0%
输出功率power	2KW	3KW
电源开关Power Supply	380V 50Hz/220V 50Hz
外形尺寸boundary dimension	2700*1100*1900mm	3000*1480*1900mm
自重 Weight	700Kg	800Kg
