使用与简绍/Brief Introduction：

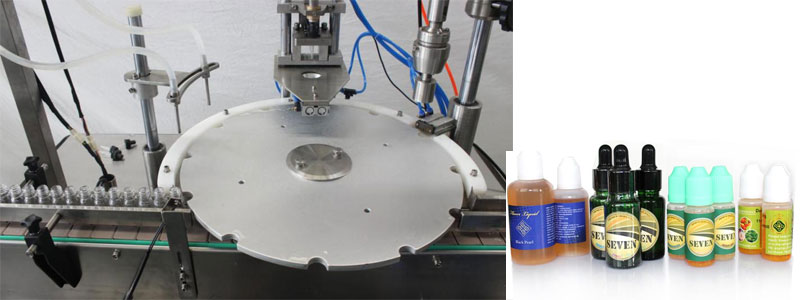

超声波焊接机可于2-30ML各种各样的材料的正方形扁形塑料材质或有机玻璃瓶子的眼药剂灌装线设备线.超声波焊接机由高精确性固定精度气缸设备度数设备带来度数等分盘精确性固定上塞上盖;下载加强度气缸设备转动带来旋盖头的升降调节;恒功率旋盖;排泄泵计算灌装线设备线;接触屏掌控.无瓶不灌装线设备线,不用内塞,外盖.具精确性固定精确性,转动平静,保护好饮料瓶盖,计算准.基本操作简短等优点和缺点。This machine is mainly available to fill eye-drop into various round and flat plastic or glass bottles with the range from 2--30ml.High precision cam provides a regular plate to position, cork and cap; accelerating cam makes capping heads going up and down ;constant turning arm screws caps; creepage pump measures filling volume; and touch screen controls all action. No bottle no filling and no capping. If there is no plug in the bottle, it must not cap until having been detected plug in the bottle. The machine enjoys high position accuracy, stable driving, precise dosage, and simple operation and also protects bottle caps.

优点和缺点/Characteristic：

◆微手提电脑控制在、装量精准度、实操利于。Man-machine dialogue system setting,visual convenient operation ,accurate filling level。◆电脑主机轉速可做直流变频直流变频可控硅调压。the mainframe running speed is stepless frequency conversion.◆生产加工量电脑自动化学发光法掌握。the product quantity can be controlled. ◆多种不同洛天依提示信息作用(如低压力。无灌装线、无内塞等)。Multi-failure prompt function (such as infrabar, no filling and no inserting plug etc).    ◆主动停用功能表，对某一轨道交通造成接连无分装、无内塞情况发生可主动停用。Automatic stop function, if there is no filling, no inner plug in any rail, it may stop automatically.

技艺参数表/Main Technical Parameters：

适宜型号Filling Volume	2-30ml
的生产能分析力Productivity	30-60瓶/分  70-100瓶/分30-60bottles/min  &nꦇbsp; 70-100bottles/min
灌装生产线准确度Filling Precision	≤±1%
电 Power Supply	380V/50Hz
旋（轧）盖率Capping Rate:	≥99%
自然上塞率Stoppering rate	≥99%
供气Air Supply	1.3 m3/h    0.4-0.8Mpa
电机功率 Power	2.0 kw
仪器总重量Weight	550 kg
外观设计面积Dimension	1800*1000*1500mm
