使用与概述/Brief Introduction：

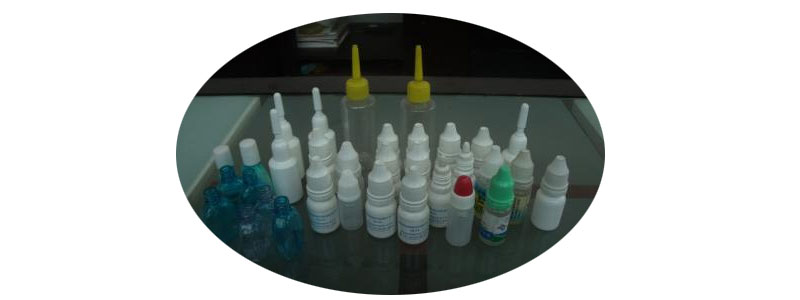

该设备可采用于2-30ML很多质量的圆型扁形金属或的瓶子的眼麻醉药分装、电子元器件烟油等小服用量分装.该设备由高精密度轴承轴度数系统具备度数等分盘手机市场定位上塞上盖;变快度轴承轴传动链系统具备旋盖头的伸降;恒转矩旋盖;胃排空泵测量分装;触感屏控住.无瓶不分装,不用内塞,外盖.具手机市场定位透彻,传动链系统顺畅,保养瓶塞,测量准.实操简洁等益处。This machine is mainly available to fill eye-drop into various round and flat plastic or glass bottles with the range from 2--30ml.High precision cam provides a regular plate to position, cork and cap; accelerating cam makes capping heads going up and down ;constant turning arm screws caps; creepage pump measures filling volume; and touch screen controls all action. No bottle no filling and no capping. If there is no plug in the bottle, it must not cap until having been detected plug in the bottle. The machine enjoys high position accuracy, stable driving, precise dosage, and simple operation and also protects bottle caps.

特别/Characteristic：

◆微手提电脑场景人物风格的设定在、装量准确度、操作步骤快捷。Man-machine dialogue system setting,visual convenient operation ,accurate filling level。◆设备转速比可确定无极直流变频控速。the mainframe running speed is stepless frequency conversion.◆加工量自動按量的控制。the product quantity can be controlled. ◆多类故障率警告特点(如低风压。无灌装设备、无内塞等)。Multi-failure prompt function (such as infrabar, no filling and no inserting plug etc).    ◆重新熄火作用，对某个轨道交通诞生重复无装罐、无内塞问题可重新熄火。Automatic stop function, if there is no filling, no inner plug in any rail, it may stop automatically.

枝术技术指标/Main Technical Parameters：

适合金桥铜业跨接线的截面积大小Filling Volume	2-30ml
产量本事Productivity	30-60瓶/分  70-100瓶/分 30-60bottles/min  70-100bottles/min
罐装精确Filling Precision	≤±1%
主机电源 Power Supply	380V/50Hz
旋（轧）盖率Capping Rate:	≥99%
自主上塞率Stoppering rate	≥99%
供气Air Supply	1.3 m3/h    0.4-0.8Mpa
工作电压 Power	2.0 kw
机总重量Weight	550 kg
看上去大小Dimension	1800*1000*1500mm
